COLLOID MILL

COLLOID MILL \

SREENEX COLLOID MILL

A colloid mill is usually a device which is used in the pharmaceutical industry to decrease the particle size of an insoluble material in suspension, either in liquid or in emulsion. The process is called emulsification. Colloid milling machines work on the rotary-stator concept: a spinning wheel rotates at high speeds against a stationary frame. The particles in the suspension are forced to travel from the top to the bottom, passing through a filter and finally exiting the system as suspension of water.

Colloid particles are tiny liquid droplets, which are attracted to the spinning action of the rotor. This attracts even more droplets, and so on until the whole suspension becomes a colloid. It is useful for the emulsification of solids (water, fat, and other fluids) which are too large in volume to be dissolved in a solvent solution. Colloid Mill Mixers can be used to increase the emulsification of such solids. Also, colloid mixes can be used for the separation of solids which are not soluble in a solvent.

Model	OUT PUT
SCM3	100 TO 1200 LITERS
SCM5	150 TO 1500 L
SCM7.5	200 TO 2000 L

Model	SCM-5	SCM-7.5
Output*	100 to 1500 Ltrs/Hour	150 to 2500 Ltrs/Hour
Particle Size Reduction*	5 to 10 Micron	5 to 10 Micron
Hopper Capacity	15 Ltrs	26 Ltrs
Electrical Motor	5 HP/3.7 Kw/3000 RPM/415 V/50 Hz/3 Phase	7.5 HP/5.5 Kw/3000 RPM/415 V50 Hz/3 Phase
Floor space in mm / Direct Drive Belt Drive	800 (L) X 500(B) X 1250 (L) X 500(B) X 1250(H)	900(L) X 550(B) X 1350 (L) X 500(B) X 1400(H)
Case dimension in mm / Direct Drive Belt Drive	650 (L) X 650(B) X 1300(H) 1450 (L) X 700(B) X 1400(H)	700 (L) X 700(B) X 1400(H) 1550 (L) X 700(B) X 1500(H)
Net weight in Kgs / Direct Drive Belt Drive	225 (approx) / 250 (approx)	180 (approx) / 200 (approx)
Gross Weight in Kgs. / Direct Drive Belt Drive	250 (approx) / 275 (approx)	300 (approx) / 360 (approx)

Pharmaceutical, Food, Dairy, Confectionery, Cosmetics, Chemicals, Textile, Ink, Ceramics, Detergent, Rubber and other industries.

Optional

Water jacketed model
S.S 316 in place of S.S.304 contact parts
Flameproof electrical fittings
Compact and easily cleanable
GMP model in place of standard model

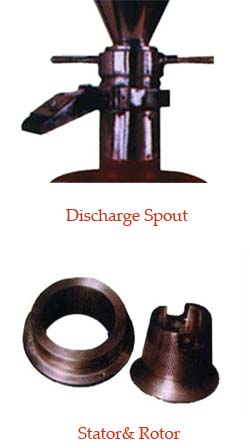

Discharge spout for viscous products

Salient Features

All contact parts are made out of 304 stainless steel
Coupling provided between motor shaft & Rotor shaft for easy maintenance
High outputs
Simple in construction
Versatile in use
Easy to clean
Maximum adjustment for minimizing milling gap
Consistency in performance
Oil seal & motor protection cover are provided
Leak proof neoprene sealing provided to avoid leakages
