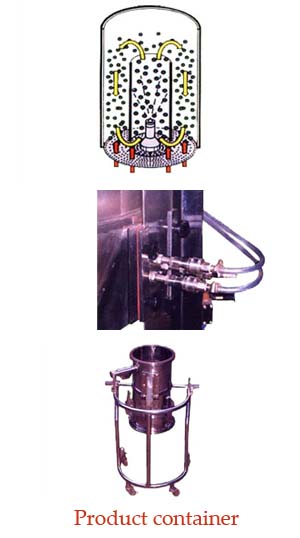

SREENEX Fluid Bed Coater
SREENEX Fluid Bed Coater is specially designed for pellets coatings. The basic concept of the Processor begins with a simple dryer
unit, to which several different option packages may be added for conversion to a granulation, film coating and pellet coating. It is 3-4 time faster then the
conventional coating method.
Techinical Specification
| Model | SFC-10 | SFC-30 | SFC-60 | SFC-100 |
|---|---|---|---|---|
| Total Bowl Volume in ltrs. | 12 | 32 | 65 | 105 |
| Batch size in Kgs. | 3 to 6 | 6 to 15 | 15 to 37 | 25 to 60 |
| Electric Motor H.P | 1 | 3 | 5 | 7.5 |
| Heater in Kw | 2.5 | 7.5 | 21 | 33 |
| Diameter of product container in mm | 200 (approx.) | 300(approx.) | 400(approx.) | 500(approx.) |
| Over all Height in mm | 2000(approx.) | 2600(approx.) | 3300(approx.) | 4000(approx.) |
Optional
- Cartridge type blow back filters
- Tangential spray
- Multiple spray nozzles
- Liquid pumping system
- Controls for liquid pumping
Salient Features
- Single shell technology for drying, mixing granulation And coating
- Replaces no. of machines like RMG, granulation, Multi Mill, FBD and overall operational coats
- Sophisticated PLC controls to ensure high degree of controls of process parameters
- Shorter cycle time
- Sample taking port
- Quick disconnection of bottom screen
