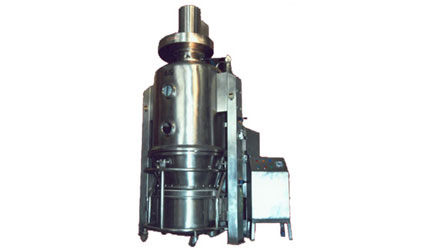

SREENEX Fluid Bed Dryer
SREENEX Fluid Bed Dryer are most suitable for drying coarse, granular, crystalline materials etc. In contrast to the conventional method of tray drying, it is widely used in the pharmaceutical and other industries, because it ensures quick and uniform drying. Various options are available like flame proof motors for products containing solvents.
Aluminium Radiator fines are provided to get better heat transfer, G.M.P. Models with all air contact parts in SS can be provided.
Techinical Specification
| Model | SFD-15 | SFD-30 | SFD-60 | SFD-120 | SFD-200 | SFD-250 | SFD-300 |
|---|---|---|---|---|---|---|---|
| Total volume of product Container in ltrs. | 50 | 115 | 220 | 445 | 650 | 750 | 1000 |
| Working capacity of product container in ltrs. | 25 | 50 | 100 | 200 | 335 | 420 | 500 |
| Batch capacity of drier in Kgs. at 0.6 Bulk density | 15 to 20 | 30 to 40 | 60 to 100 | 100 to 150 | 200 to 250 | 250 to 300 | 300 to 400 |
| Blower motor kw/hp | 2.2/3 | 3.7/5 | 7.5/10 | 11/15 | 15/20 | 18.5/25 | 22/30 |
| Blender Capacity in Ltrs. | 15 | 30 | 70 | 120 | 175 | 200 | 300 |
| Heating capacity in kw | 19 | 18 | 36 | 60* | 90* | 120* | 175* |
From 120Kgs,Onwards Steam Heated Advisable

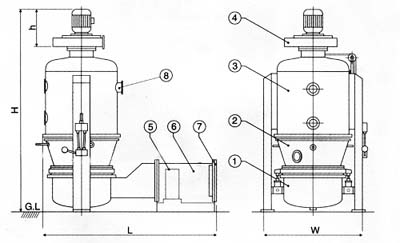

- JACK CHAMBER
- PRODUCT CONTAINER
- FINGER BAG CHAMBER
- BLOWER
- HEATING ELEMENTS
- HEATING ELEMENT CHAMBER
- AIR INLET FILTERS
- EXPLOSIVE FLAP
Salient Features
- 15kg. To 300kg.batch capacities
- Better productivity and low drying time
- SS container with tilting arrangement
- Compact and easily cleanable
- No product contamination batch to batch
- Uniform drying
- Low drying temperature
- Electric or Steam Heated
- Manual or Automatic bag shaking
- Single piece retarding and finger Bag chamber available
Dimensions
| Model | SFD-15 | SFD-30 | SFD-60 | SFD-120 | SFD-200 | SFD-250 | SFD-300 |
|---|---|---|---|---|---|---|---|
| L | 2050 | 2400 | 2535 | 2950 | 3300 | 3475 | 3525 |
| W | 800 | 1010 | 1390 | 1700 | 1900 | 2175 | 2275 |
| H | 2200 | 2740 | 2850 | 3410 | 3825 | 4075 | 4375 |
| h | 475 | 500 | 590 | 685 | 745 | 775 | 825 |
