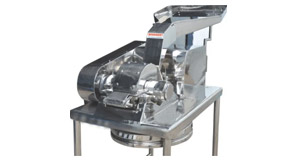

SREENEX Micro Pulveriser
SREENEX Micro Pulveriser is designed to meet varied pulverising requirements in Pharmaceutical, Chemical and many other industries. The mill can be effectively used for pulverising soft and hard material to required fineness. The milling chamber is provided with replaceable multiple deflector liner and serrations to achieve greater fineness of milled material
Techinical Specification
| Model | SMP-8/3 | SMP-12/6 | SMP/12/9 |
|---|---|---|---|
| * Capacity per hour | 50-600 Kgs | 100-600 Kgs | 150-800 Kgs |
| Rotor (RPM) | 2600/4300/8000 | 1480/3050/5700 | 1480/3050/5700 |
| Electrical Motor | 3Hp/2.2 K.W 415 V/50 Hz/3 Phase | 7.5Hp/5.5 K.W 415 V/50 Hz/3 Phase | 10Hp/7.5 K.W 415 V/50 Hz/3 Phase |
| Floor Space in mm | L x B x H 700 x 900 x 1650 | L x B x H 750 x 1250 x 1700 | L x B x H 800 x 1250 1750 |
| Net Weight in Kgs. | 200(approx.) | 350(approx.) | 425(approx.) |
| Gross Weight in Kgs. | 330(approx.) | 500(approx.) | 600(approx.) |
Application
SREENEX Micro Pulveriser machine is widely used for micro pulverisation in Pharmaceutical, Food, and chemical, Ayurveda, Confectionery and many more other industries.
Other Ranges of Pulveriser
- Impact Mill
- Air Classifier Mill
- Air Jet Mil
- Bantum Pulveriser
Optional
- Screw feeding system
- Various shapes of hammers
- S.S.316 in place of S.S.304 contact parts
- GMP model in place of standard model
- Flameproof electrical fittings
- Water jacketed model
Salient Features
- Dynamically balanced rotor

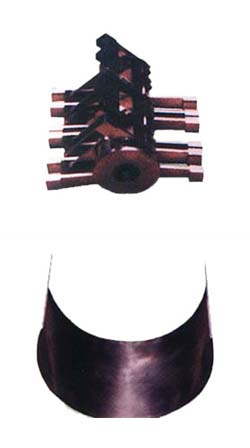

- Special alloy steel hammers rotating at very high speeds
- Replaceable multiple deflector liner with innovative serrations for fine particle reduction
- Wide range of model to suit desired output
- Quickly & easily accessibility of chamber for cleaning and inspection
