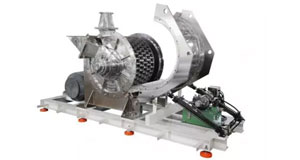

HOW IT WORKS - TURBO MILL

Materials are fed to the single-feed Screw unit and the material drop onto the turbo rotor. Centrifugal Force drives the material out to the periphery of the turbo rotor where it is acted on Serration Fixed Pads. In this zone, the material is subjected to multiple impacts as it passes through the maze of turbo Rotor which results in size reduction, or high-intensity mixing. The force imparted to the material is controlled by the speed of the turbo rotor. For maximum energy, the turbo rotor speed would be high for more gentle handling, low rotational speeds are selected. The turbo rotor speed can be controlled by sheave changes, manual adjustment or variable frequency controller. After passing through the impact zone and screen, the material discharges from the discharge hopper cone in a vortex configuration.
